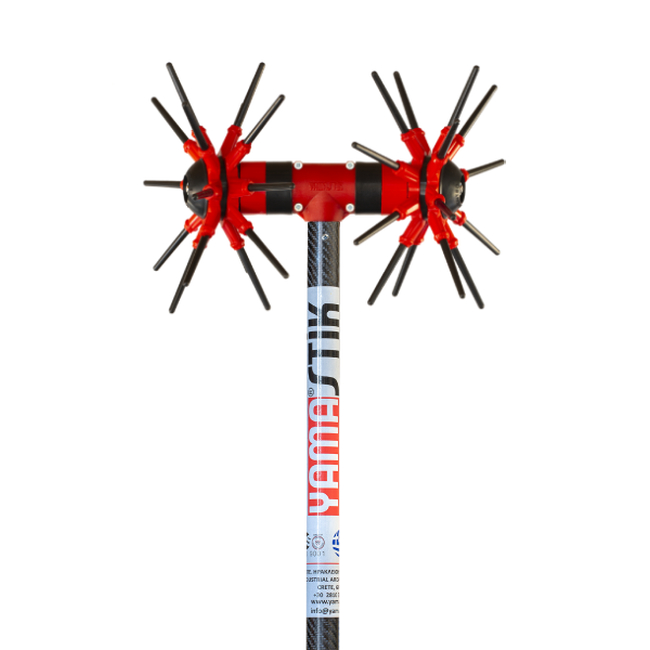

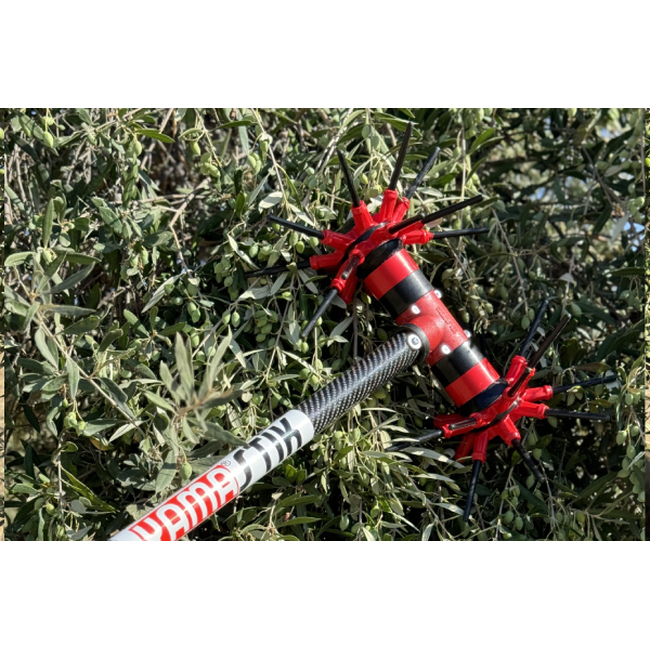

Olive harvester YAMASTIK DIABLO CF 4X4 2.5m

ERGONOMIC DESIGN AND VERSATILITY

The “DIABLO 4X4” is extremely light and perfectly balanced, ensuring comfort during long hours of work. Compatible with all Yamastik controls, it adapts to the turns of other oil burners, providing flexibility and adaptability.

It has 32 rods made of hard plastic with carbon fiber and is specially designed so that all parts of the head are removable and can be replaced individually.

The transmission system in the head consists of highly hardened helical metal gears, offering full power, quiet operation and a long service life.

“DIABLO 4X4” ROD

It is manufactured after extensive research, with an advanced design and from extremely durable thermoplastic material reinforced with carbon fiber. The slim shape of the stick ensures excellent grip on dense branches with a long service life, while replacement is extremely easy. Once the hemisphere is removed, each stick is placed on the stick carrier by pushing from the inside out.

DRIVE SYSTEM

The drive system in the head of all Yamastik olive flails is proven to be the most reliable. It consists of highly hardened helical metal gears, which offer maximum power, quiet operation and excellent durability over time. The cams are made of 8mm diameter steel shaft, providing excellent resistance to breakage and bending, ensuring smooth operation without vibrations. In addition, the system is fully compatible with the balls of all Yamastik olive flail models, offering another important advantage.

«DIABLO 4X4» POLE

Available with a carbon fiber tube, adding all the advantages of the material such as very low weight, increased rigidity, high resistance to pressures and temperatures. The carbon fiber pole is the choice that will surely satisfy even the most demanding professional farmer.

COOLED HANDLE

The 400 Watt high-power cooled motor features an ergonomically designed handle, quiet operation, very low weight and high-quality cable without losses. It is the ideal choice for long-term and professional use. It is manufactured in three versions: 12-15V, 12-18V and 24V, so that it can be adapted and operated on any olive harvester generator or battery.

BRUSHLESS CONTROLLER WITHOUT COOLERS

Ergonomically designed, very powerful 800 Watt and low weight Brushless controller YAMASTIK. It is manufactured in 3 versions 12-15V, 15-20V, 20-25V so that it can be adapted and operated on any generator of an olive harvester or battery, while the speed adjustment is done with a potentiometer. WEIGHT: 1.0 Kg

GUARANTEE OF GOOD OPERATION

After 40 years and more in the field of machinery manufacturing, YAMASTIK offers a 2-year guarantee of good operation on all its products
